Everything You Need to Know About Manufacturing Ball Valves: A Look Inside the Process
When you think about the little unsung heroes of the industrial world, ball valves might not be the first thing that comes to mind, but they should be! These simple yet crucial components regulate flow in countless industries, ensuring the safety, efficiency, and smooth operation of pipelines and systems worldwide. Whether you're familiar with how they work or you're just starting to dip your toes into the fascinating world of valve manufacturing, this guide will walk you through everything you need to know about how ball valves are made, their vital functions, and the factors that contribute to creating the best possible product.
September 25, 2024 00:51
What Are Ball Valves and How Do They Work?

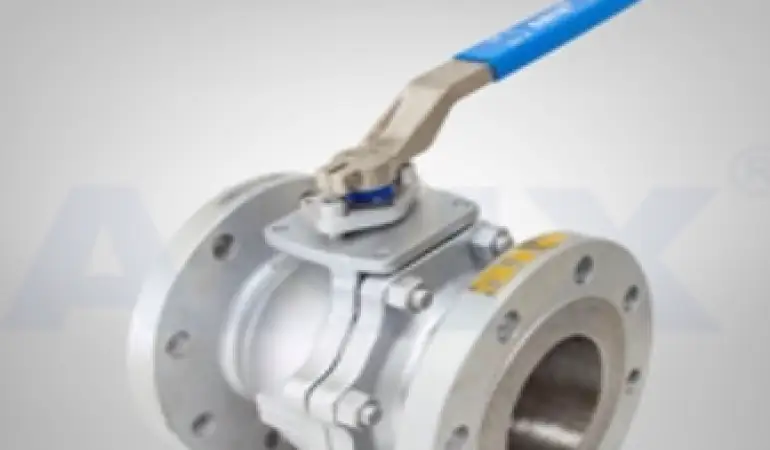

Before diving into the manufacturing process, it’s important to understand what ball valves are and why they’re so essential. A ball valve is a type of shut-off valve that controls the flow of a liquid or gas by using a spherical-shaped disc—the "ball"—which has a hole in the center. When the valve handle is turned, the ball rotates to either allow or block the flow. Sounds simple, right? It is, but that simplicity hides a highly engineered process designed to produce a durable, reliable, and precise product.
Ball valves are used in various industries, from oil and gas pipelines to water treatment facilities, food and beverage production, pharmaceuticals, and more. Their ability to withstand extreme pressures, corrosive environments, and frequent use makes them indispensable in high-stakes applications. But how are these small but mighty valves created?
The Essential Materials: What Ball Valves Are Made Of
Choosing the right material for ball valves is crucial. The material must meet the demands of the specific application, including resistance to corrosion, high pressures, extreme temperatures, and chemicals. Generally, the ball and body of the valve are made from metals such as stainless steel, brass, or carbon steel. Let's break down some of the common materials used:
- Stainless Steel: This is a popular choice because of its strength and resistance to corrosion, especially in harsh environments like marine and chemical industries.
- Brass: Used mostly in low-pressure applications such as water lines, brass offers excellent durability while being cost-effective.
- Carbon Steel: Valves made from carbon steel are widely used in high-pressure situations, offering both strength and affordability.
For the seats, seals, and packing, manufacturers often use materials like PTFE (Teflon) or other elastomers that can withstand the wear and tear of valve operation while creating a perfect seal to prevent leaks.
The Manufacturing Process: From Raw Materials to Precision Valves
The process of manufacturing a ball valve is a detailed and meticulous one. It all starts with selecting the proper raw materials, as mentioned earlier, and then moves through a series of precise machining, assembly, and testing steps. Let’s walk through the key stages.
1. Forging and Casting
Most high-quality ball valves begin their life as a solid piece of metal that is either forged or cast into a rough shape. Forging is typically preferred for valves designed to handle high pressures, while casting is used for more complex or larger valve designs. During this stage, the metal is heated and formed into the shape of the valve’s body and the ball itself.
2. Machining
Once the valve body and ball have been forged or cast, they are moved to CNC (computer numerical control) machines. This is where precision comes into play. The valve body needs to have exact dimensions for the ball to fit snugly. Machining ensures that every component is accurate to the specifications, down to the millimeter.
During this step, the ball itself will be drilled with a hole that corresponds to the required flow rate for the specific valve design. The handle attachment is also fitted during machining.
3. Assembly
Now, all the pieces come together. The ball is inserted into the valve body, and the necessary seats, seals, and packing materials are put in place. The handle or actuator is added, which will allow the ball to rotate within the valve body.
In automated applications, the valve might include an electric or pneumatic actuator rather than a manual handle. This allows the valve to open or close automatically in response to certain conditions, such as temperature or pressure changes.
4. Testing
Once assembled, the ball valve must undergo rigorous testing to ensure it meets industry standards. Pressure tests are conducted by filling the valve with water, air, or another medium and then pressurizing it to verify there are no leaks. Quality assurance checks like cycle testing, corrosion resistance tests, and pressure endurance tests are standard.
Innovation in Ball Valve Manufacturing
Like many industries, valve manufacturing is constantly evolving with technological advancements. Today, more manufacturers are adopting automated systems and robotic assembly lines to streamline production and ensure even greater precision.
Smart valves with remote monitoring and control capabilities are also becoming more common, allowing operators to track performance and make real-time adjustments to flow rates and pressures. These innovations help reduce downtime and maintenance costs, making industries more efficient overall.
3D printing is another frontier being explored for its potential to revolutionize valve production. While still in its infancy for large-scale applications, additive manufacturing could reduce material waste and increase customization options.
Choosing the Right Ball Valve: Key Considerations
When selecting a ball valve for a specific application, there are several factors to consider:
- Size: The valve must match the diameter of the pipes it will connect to.
- Pressure Rating: Ensure the valve can handle the system's maximum pressure.
- Temperature Range: Valves must be rated for the temperatures they will encounter, especially in high-heat industries.
- Flow Requirements: Depending on whether you're regulating gas, liquids, or slurry, the valve design may need to be optimized for different flow characteristics.
Why Quality Matters in Ball Valve Manufacturing
The smallest flaw in a valve could lead to major issues down the line—whether it’s a leaky seal that compromises a system’s safety or a malfunctioning actuator that halts production. Quality is everything in valve manufacturing. Reputable companies adhere to strict international standards such as API, ISO, and ASME to ensure their products are reliable and durable.
Regular inspections and maintenance can prolong the lifespan of a ball valve, but ultimately, a well-manufactured valve will deliver better long-term performance, minimizing downtime and preventing costly repairs.
Anix Valve USA: A Trusted Name in Ball Valve Manufacturing
When it comes to finding a reliable partner in ball valve manufacturing, Anix Valve USA stands out as a leader in the industry. They combine state-of-the-art technology with decades of experience to produce high-quality ball valves that meet the needs of various applications. From oil and gas to water treatment and more, Anix Valve USA offers a wide range of durable, efficient, and cost-effective valve solutions tailored to the demands of your operation.
Whether you need a standard valve or a custom-designed solution, Anix Valve USA delivers precision, reliability, and unparalleled service. When quality matters, Anix Valve USA is the name to trust.
